Service

Mi nemcsak áruljuk, hanem ismerjük is az Epson külső tartályos készülékeit. Vállaljuk:

• Epson tartályos nyomtató garancián túli karbantartását

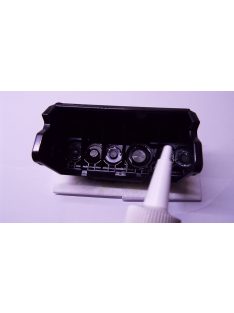

• Epson tartályos nyomtató garancián túli nyomtatófej tisztítását (csíkos, hiányos nyomtatás, egyéb nyomtatási hibák)

• Epson tartályos nyomtató hulladéktartály cseréjét, szoftveres újraindítását (eredeti kellékekkel dolgozunk)

• Egyéb problémák elhárítását

• Epson tintapatronos készülékek karbantartása / javítása

Mikor nem vállaljuk a nyomtatót?

• Alkohollal, egyéb maró anyaggal már érintkezésbe került a nyomtató vagy egyéb házilagos megoldással kezelve lett a készülék.

Háztól házig szerviz szolgáltatás keretében javítunk garanciaidőn kívül eső tintasugaras Epson nyomtatókat. Mit is jelent ez?

• Elküldi részünkre a nyomtatót vagy futárt küldünk érte.

• Bevizsgáljuk a készüléket.

• Árajánlatot adunk. (Előzetes megközelítő árajánlat kérhető az űrlapon.)

• Visszaszállítjuk a nyomtatót.

• Önnek nem is kell otthonról elmennie!

Olyan készülékeket is mentettük már meg, amelyekről más szerviz már lemondott. Adjon egy utolsó esélyt a nyomtatójának! Nem veszít semmit!

Milyen nyomtatók szervizelését vállaljuk?

• Epson tintapatronos tintasugaras nyomtatók

• Epson ITS nyomtatók

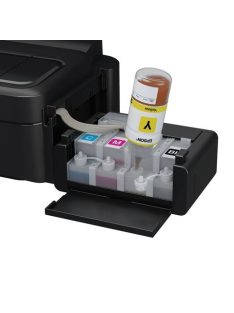

• Epson EcoTank nyomtatók

• kivéve lézernyomtatók és mátrixnyomtatók

Milyen hibák esetén tudunk segíteni?

• Nyomtatófej beszáradás, csíkos nyomtatás, színhiányos, színhibás nyomtatás, egyéb nyomtatási hibák.

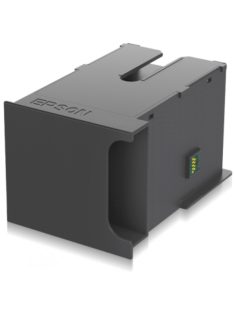

• Hulladéktintatartály karbantartás / csere (csere esetén eredeti Epson kellékkel).

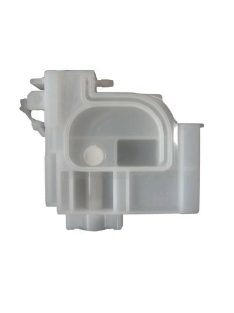

• Tintaellátási problémák.

• Kifogyott tinta esetén felmerülő hibák.

• Egyéb hibák.

Igen, ilyet is javítunk (letört nyomtatófej pin):

Mennyi idő egy hiba elhárítása?

Sajnos pontos időt nem tudunk mondani, hiba jellegétől függ, azonban nem érdekünk ülni a munkán.

Miért minket válasszon?

• Rugalmas szerviz.

• Gyors szerviz.

• Jó áron dolgozunk.

• Nem hiszi? Próbálja ki!

Gyakori Epson hibakódok:

000020

MEANING="CR PID driving time error"

DESCRIPTION="- Main Board failure"

000021

MEANING="CR PID overload error"

DESCRIPTION="- CR Motor failure\r\n- CR Unit drive mechanism overload (paper jam, foreign object,\r\n- insufficient grease, deformation of the Main Frame)\r\n- Some part may be detached. (Paper Guide Upper Assy, Cap Assy)\r\n- Tooth skip of the CR Timing Belt\r\n- Improper tension of the CR Timing Belt\r\n- Cable disconnection\r\n- Main Board failure (Motor driver failure)"

000022

MEANING="CR PID excess speed error"

DESCRIPTION="- CR Encoder failure (contaminated/detached scale, Encoder Sensor failure)\r\n- Main Board failure (Motor driver failure)"

000023

MEANING="CR PID reverse error"

DESCRIPTION="- CR Encoder failure (contaminated/detached scale, Encoder Sensor failure)\r\n- Some external force is applied to the printer such as stopping the CR Unit during printer operation, vibration or the like.\r\n- Tooth skip of the CR Timing Belt\r\n- Paper jam\r\n- Main Board failure (Motor driver failure)"

000024

MEANING="CR PID lock error"

DESCRIPTION="- CR Encoder failure (contaminated/detached scale, Encoder Sensor failure)\r\n- CR Motor failure\r\n- CR Unit drive mechanism overload (paper jam, foreign object, insufficient grease, deformation of the Main Frame)\r\n- Some part may be detached. (Paper Guide Upper Assy, Cap Assy)\r\n- Cable disconnection\r\n- Main Board failure (Motor driver failure)"

000025

MEANING="CR PID speed fall error"

DESCRIPTION="- Main Board failure (Firmware failure)\r\n- Cartridge overload due to paper jam"

000030

MEANING="CR load position driving time error"

DESCRIPTION="- Change Lever failure\r\n- CR Motor failure\r\n- Main Board failure (Motor driver failure)"

000031

MEANING="CR load position excess load error

"

DESCRIPTION="- PF Motor failure\r\n- PF drive mechanism overload (paper jam, foreign object)\r\n- Tooth skip of the PF Timing Belt\r\n- Improper tension of the PF Timing Belt\r\n- Cable disconnection"

000032

MEANING="CR load position overspeed error"

DESCRIPTION="- PF Encoder failure (contaminated/detached scale, Encoder Sensor failure)\r\n- Tooth skip of the PF Timing Belt\r\n- Improper tension of the PF Timing Belt\r\n- Main Board failure (Motor driver failure)"

000033

MEANING="CR load position reverse error"

DESCRIPTION="- CR Encoder failure (contaminated/detached scale, Encoder Sensor\r\n- failure)\r\n- Main Board failure (Motor driver failure)"

000040

MEANING="PF(PID) driving overtime error"

DESCRIPTION="- Main Board failure (Firmware failure)"

000041

MEANING="PF PID overload error"

DESCRIPTION="- PF Motor failure\r\n- PF drive mechanism overload (paper jam, foreign object, insufficient\r\n- grease, deformation of the Main Frame)\r\n- Tooth skip of the PF Timing Belt\r\n- Improper tension of the PF Timing Belt\r\n- Cable disconnection\r\n- Main Board failure (Motor driver failure)"

000042

MEANING="PF PID overspeed error"

DESCRIPTION="- PF Encoder failure (contaminated/detached scale, Encoder Sensor failure)\r\n- Tooth skip of the PF Timing Belt\r\n- Improper tension of the PF Timing Belt\r\n- Main Board failure (Motor driver failure)"

000043

MEANING="PF PID reverse error"

DESCRIPTION="- PF Encoder failure (contaminated/detached scale, Encoder Sensor failure)\r\n- Tooth skip of the PF Timing Belt\r\n- Improper tension of the PF Timing Belt\r\n- Paper jam\r\n- Paper is pulled out from the ASF side when paper is fed\r\n- Main Board failure (Motor driver failure)"

000044

MEANING="PF PID lock error"

DESCRIPTION="- PF Encoder failure (contaminated/detached scale, Encoder Sensor failure)\r\n- PF Motor failure\r\n- PF drive mechanism overload (paper jam, foreign object, insufficient grease, deformation of the Main Frame)\r\n- Cable disconnection\r\n- Main Board failure (Motor driver failure)"

000050

MEANING="PF load position driving overtime error"

DESCRIPTION="- PF Encoder failure (contaminated/detached scale, Encoder Sensor failure)\r\n- PF Motor failure\r\n- PF drive mechanism overload (paper jam, foreign object)\r\n- Cable disconnection"

000051

MEANING="PF load postion"

DESCRIPTION="- PF Motor failure\r\n- PF drive mechanism overload (paper jam, foreign object)\r\n- Tooth skip of the PF Timing Belt\r\n- Improper tension of the PF Timing Belt\r\n- Cable disconnection"

000052

MEANING="PF load position excess speed error"

DESCRIPTION="- PF Encoder failure (contaminated/detached scale, Encoder Sensor failure)\r\n- Tooth skip of the PF Timing Belt\r\n- Improper tension of the PF Timing Belt\r\n- Main Board failure (Motor driver failure)"

000053

MEANING="PF load position reverse error"

DESCRIPTION="- PF Encoder failure (contaminated/detached scale, Encoder Sensor failure)\r\n- Tooth skip of the PF Timing Belt\r\n- Improper tension of the PF Timing Belt"

031001

MEANING="X-Hot detect error (pre printing)"

DESCRIPTION="- Printhead failure\r\n- Main Board failure"

031002

MEANING="X-Hot detect error (after flushing)"

DESCRIPTION="- Printhead failure\r\n- Main Board failure"

031003

MEANING="Transistor temperature error"

DESCRIPTION="- Main Board failure"

031004

MEANING="Head temperature error"

DESCRIPTION="- Printhead failure\r\n- Main Board failure"

031005

MEANING="Headhot error during ink replacement"

DESCRIPTION="- Printhead failure\r\n- Main Board failure"

031006

MEANING="Head fuse broken error"

DESCRIPTION="- Printhead failure"

031007

MEANING="Power off error due to abnonal printing"

DESCRIPTION="- Abnormal printhead control\r\n-\r\n"

033001

MEANING="CRC fuse borken error"

DESCRIPTION="- CRCM failure"

033002

MEANING="ASIC access error"

DESCRIPTION="- Main Board failure"

033003

MEANING="CCS rank setting error"

DESCRIPTION="- Main Board failure"

033004

MEANING="SC transmission fetal error"

DESCRIPTION="- Main Board failure"

033006

MEANING="Read parity error"

DESCRIPTION="- Main Board failure"

033007

MEANING="Write parity error"

DESCRIPTION="- Main Board failure"

033008

MEANING="Access inconsistent error"

DESCRIPTION="- Main Board failure"

033009

MEANING="Print error with Jig"

DESCRIPTION="- Not occures except in manufacturing process"

033501

MEANING="ILS light error"

DESCRIPTION="- Unable to accurately detect where the fault detection plate is because too much diffused light from outside is shed on the sensor. (When used outdoors or near the window where direct sunlight comes in)"

033503

MEANING="Reflector no reflection error"

DESCRIPTION="- Defective Fault Detection Plate* (detachment, peeled reflector)\r\n- Sensor failure (contaminated Sensor, damaged FFC, PIS Board\r\n- installation failure)"

033504

MEANING="ILS abnormal error"

DESCRIPTION="- Defective Fault Detection Plate* (detachment, peeled reflector)\r\n- Sensor failure (contaminated Sensor, damaged FFC, PIS Board\r\n- installation failure)"

033505

MEANING="ILS Empt jig error"

DESCRIPTION="- No occures except in manufacturing prodess."

033506

MEANING="Light excessive error"

DESCRIPTION="- Abnormal sensor output (Sensor failure, PIS Board failure)\r\n- Unexpected excessive amount of light such as too much diffused light from outside is shed on the sensor because the housings are removed.\r\n- (When used outdoors or near the window where direct sunlight comes in)"

033507

MEANING="Insufficient light error"

DESCRIPTION="- Sensor failure (PIS Board installation failure, contaminated Sensor)\r\n- Abnormal sensor output (Break of FFC during printer operation, PIS Board failure)\r\n- Unable to accurately detect where the fault detection plate is because too much diffused light from outside is shed on the sensor. (When used outdoors or near the window where direct sunlight comes in)\r\n- Ink Cartridge failure (contaminated/damaged prism)"

034001

MEANING="Home position error"

DESCRIPTION="- Foreign object\r\n- Deformation of the Main Frame\r\n- Change Lever failure\r\n- Paper jam"

034004

MEANING="Insoluble paper jam error"

DESCRIPTION="- Foreign object\r\n- Deformation of the Main Frame\r\n- Change Lever failure\r\n- Paper jam"

060001

MEANING="The cause is not printer device error"

DESCRIPTION="- Scanner failure"

SCN_100016

MEANING="HP detection failure"

DESCRIPTION="- CIS Unit failure\r\n- Scanner Housing Upper failure\r\n- Scanner Housing Lower failure\r\n- Scanner Motor failure\r\n- Foreign object\r\n- Main Board failure"

SCN_100020

MEANING="Measurement error"

DESCRIPTION="- Scanner drive mechanism was overloaded\r\n- Insufficient grease\r\n- Foreign object\r\n- Lack of gears\r\n- Deformation of the shaft"

SCN_100032

MEANING="LED light error"

DESCRIPTION="- CIS Unit failure\r\n- Main Board failure"

SYS_202620

MEANING="Wi Fi error"

DESCRIPTION="- WIFI board failure"

SYS_205102

MEANING="Card board error"

DESCRIPTION="- Card board error"

100001

MEANING="ADF PID excess speed error"

DESCRIPTION="- Failed to read the ADF motor encoder\r\n 1. Contamination of the ADF encoder scale\r\n 2. Damage or skew of the ADF encoder FFC\r\n 3. Failure of the ADF encoder sensor\r\n- Failure of the ADF motor driver\r\n 4. Failure of the main board"

100002

MEANING="ADF PID reverse error"

DESCRIPTION="- Paper feed fails, stopped by obstacles\r\n 1. Paper feed was stopped by;\r\n - Obstacles such as jammed paper\r\n - Overload of the paper feed mechanism\r\n - Disengaging or tooth breakage of wheel train\r\n of the paper feed mechanism\r\n- Failed to read the PF motor encoder\r\n 2. Jumping of the ADF timing belt\r\n 3. Contamination of the ADF encoder scale\r\n 4. Damage or skew of the ADF encoder FFC\r\n 5. Failure of the ADF encoder sensor\r\n 6. Failure of the main board"

100003

MEANING="ADF PID lock error"

DESCRIPTION="- The ADF motor did not run or obstacles exist in the paper path\r\n1. Overload of the paper feed mechanism\r\n2. The ADF timing belt become frayed, jumping,\r\n or the wheel train of paper feed mechanism\r\n is disengaged or its tooth is broken\r\n- Failed to read the ADF motor encoder\r\n 3. Contamination of the ADF encoder scale\r\n 4. Disconnection, break, skew or damage of the ADF encoder FFC\r\n 5. Failure of the ADF encoder sensor\r\n 6. Failure of the ADF motor (the lead wire\r\n is broken or the connector is disconnected)\r\n 7. Failure of the main board"

100004

MEANING="ADF PID acceleration lock error"

DESCRIPTION="- The ADF motor did not run or obstacles exist in the paper path\r\n1. Overload of the paper feed mechanism\r\n2. The ADF timing belt become frayed, jumping,\r\n or the wheel train of paper feed mechanism\r\n is disengaged or its tooth is broken\r\n- Failed to read the ADF motor encoder\r\n 3. Contamination of the ADF encoder scale\r\n 4. Disconnection, break, skew or damage of the ADF encoder FFC\r\n 5. Failure of the ADF encoder sensor\r\n 6. Failure of the ADF motor (the lead wire\r\n is broken or the connector is disconnected)\r\n 7. Failure of the main board"

100005

MEANING="ADF PID excess load error"

DESCRIPTION="- The ADF motor stopped running in the middle of the operation\r\n 1. The ADF was stopped by;\r\n - Obstacles such as jammed paper\r\n - Overload of the paper feed mechanism\r\n - Disengaging or breakage of the gears\r\n- Failed to read the ADF motor encoder\r\n 2. The timing belt become frayed or jumping\r\n 3. Contamination of the ADF encoder scale\r\n 4. Disconnection, break, skew or damage\r\n of the ADF motor cable/encoder FFC\r\n 5. Failure of the ADF motor (not completely broken)\r\n 6. Failure of the main board"

100006

MEANING="ADF PID driving time error"

DESCRIPTION="Malfunction or crash of the firmware"

100009

MEANING="ADF BS+ excess speed error"

DESCRIPTION="- Failed to read the ADF motor encoder\r\n 1. Contamination of the ADF encoder scale\r\n 2. Damage or skew of the ADF encoder FFC\r\n 3. Failure of the ADF encoder sensor\r\n- Failure of the ADF motor driver\r\n 4. Failure of the main board"

100010

MEANING="ADF BS+ reverse error"

DESCRIPTION="- Paper feed fails, stopped by obstacles\r\n 1. Paper feed was stopped by;\r\n - Obstacles such as jammed paper\r\n - Overload of the paper feed mechanism\r\n - Disengaging or tooth breakage of wheel train\r\n of the paper feed mechanism\r\n- Failed to read the ADF motor encoder\r\n 2. Jumping of the ADF timing belt\r\n 3. Contamination of the ADF encoder scale\r\n 4. Damage or skew of the ADF encoder FFC\r\n 5. Failure of the ADF encoder sensor\r\n 6. Failure of the main board"

100011

MEANING="ADF BS+ lock error"

DESCRIPTION="- The ADF motor did not run\r\n 1. The ADF was stopped by;\r\n - Obstacles such as jammed paper\r\n - Overload of the mechanism\r\n - Disengaging or breakage of the gears\r\n- Failed to read the ADF encoder\r\n 2. Contamination of the ADF encoder scale\r\n 3. Disconnection, break, skew or damage\r\n of the ADF motor cable/encoder FFC\r\n 4. Failure of the ADF encoder sensor\r\n 5. Failure of the ADF motor (the lead wire is broken\r\n or the connector is disconnected)\r\n 6. Failure of the main board"

100013

MEANING="ADF BS+ excess load error"

DESCRIPTION="- The ADF motor stopped running in the middle of the operation\r\n 1. The ADF was stopped by;\r\n - Obstacles such as jammed paper\r\n - Overload of the paper feed mechanism\r\n - Disengaging or breakage of the gears\r\n- Failed to read the ADF motor encoder\r\n 2. Jumping of the timing belt\r\n 3. Contamination of the ADF encoder scale\r\n 4. Failure of the ADF motor (not completely broken)\r\n 5. Failure of the main board"

100014

MEANING="ADF BS+ driving time error"

DESCRIPTION="Malfunction or crash of the firmware"

100016

MEANING="HP detection failure"

DESCRIPTION="- The scanner CR could not return to its home.\r\n 1. Damage or disengaging of wheel train of the drive mechanism\r\n 2. Disengaging, fraying, jumping of the timing belt\r\n- Failed to read the white standard/home patterns\r\n 3. Disconnection, break, skew or damage of the scanner FFC\r\n 4. Failure of the CIS unit\r\n 5. Failure of the scanner housing\r\n 6. Failure of the main board"

100017

MEANING="Contact detection distance exceeded"

DESCRIPTION="- The scanner CR cannot completely reach the home (left side)\r\n 1. Damage or disengaging of wheel train of the drive mechanism\r\n- Failed to read the scanner encoder\r\n 2. Damage or skew of the scanner FFC\r\n 3. Failure of the CIS unit\r\n 4. Failure of the scanner housing\r\n 5. Failure of the main board"

100018

MEANING="Opposite side contact detection distance

exceeded error"

DESCRIPTION="- The scanner CR cannot completely reach the opposite side of the home (right side)\r\n 1. Damage or disengaging of wheel train of the drive mechanism\r\n- Failed to read the scanner encoder\r\n 2. Damage or skew of the scanner FFC\r\n 3. Failure of the CIS unit\r\n 4. Failure of the scanner housing\r\n 5. Failure of the main board"

100019

MEANING="Wrong contact detection distance error"

DESCRIPTION="1. CIS Unit failure\r\n2. Scanner Housing failure (Including wrong attachment of the origin mark)\r\n3. Main Board failure\r\n4. Scanner FFC failure / Scanner FFC connection failure\r\n5. Scanner Motor failure / Scanner Motor connection failure"

100020

MEANING="Measurement error"

DESCRIPTION="- Overload of the scanner drive mechanism\r\n- Failure of the scanner motor"

100032

MEANING="LED light failure"

DESCRIPTION="- Failure of the CIS LED light (RGB)\r\n1. Disconnection, break, skew or damage of the scanner FFC\r\n2. Failure of the CIS unit\r\n3. Failure of the main board"

100048

MEANING="Option error"

DESCRIPTION="Žg—p‚µ‚Ä‚˘‚Č‚˘"

100054

MEANING="Paper jam error"

DESCRIPTION="- No jammed paper is remaining but the sensor does not turn off\r\n 1. Failure of the ADF PE sensor\r\n 2. Failure of the cable\r\n- Jammed paper is remaining\r\n- The paper feed rollers and paper conveying rollers slip too much\r\n  At power-on, during paper feed, during scanning"

100065

MEANING="FB PID excess speed error"

DESCRIPTION="- Failed to read the scanner encoder\r\n 1. Contamination of the scanner encoder scale\r\n 2. Damage or skew of the scanner FFC\r\n 3. Failure of the scanner encoder sensor\r\n- Failure of the scanner motor driver\r\n 4. Failure of the main board"

100066

MEANING="FB PID reverse error"

DESCRIPTION="- Operation failure of the scanner motor\r\n 1. The scanning operation was stopped by;\r\n - Disengaging of the scanner CR\r\n - Disengaging of the scanner motor pulley\r\n or cracking of the scanner motor gears\r\n- Failed to read the scanner encoder\r\n 2. Contamination of the scanner encoder\r\n 3. Damage or skew of the scanner FFC\r\n 4. Failure of the scanner encoder sensor\r\n 5. Failure of the main board"

100067

MEANING="FB PID lock error"

DESCRIPTION="- The scanner motor did not run\r\n 1. The scanning operation was stopped by;\r\n - Disengaging of the scanner CR\r\n - Disengaging of the scanner motor pulley\r\n or cracking of the scanner motor gears\r\n- Failed to read the CR motor encoder\r\n 2. Contamination of the scanner encoder\r\n 3. Damage or skew of the scanner FFC\r\n 4. Failure of the scanner encoder sensor\r\n 5. Failure of the scanner motor\r\n 6. Failure of the main board"

100068

MEANING="FB PID acceleration lock error"

DESCRIPTION="- The scanner motor did not run\r\n 1. The scanning operation was stopped by;\r\n - Disengaging of the scanner CR\r\n - Disengaging of the scanner motor pulley\r\n or cracking of the scanner motor gears\r\n- Failed to read the scanner motor encoder\r\n 2. Contamination of the scanner encoder\r\n 3. Damage or skew of the scanner FFC\r\n 4. Failure of the scanner encoder sensor\r\n 5. Failure of the scanner motor"

100069

MEANING="FB PID excess load error"

DESCRIPTION="- The scanner motor stopped running in the middle of the operation\r\n 1. The scanning operation was stopped by;\r\n - Disengaging of the scanner CR\r\n - Disengaging of the scanner motor pulley\r\n or cracking of the scanner motor gears\r\n- Failed to read the scanner motor encoder\r\n 2. Contamination of the scanner encoder\r\n 3. Disconnection, break, skew or damage of the scanner FFC\r\n 4. Failure of the scanner encoder sensor\r\n 5. Failure of the scanner motor"

100070

MEANING="FB PID driving time error"

DESCRIPTION="Malfunction or crash of the firmware"

100073

MEANING="FB BS+ excess speed error"

DESCRIPTION="- Failed to read the scanner encoder\r\n 1. Contamination of the scanner encoder scale\r\n 2. Damage or skew of the scanner FFC\r\n 3. Failure of the scanner encoder sensor\r\n- Failure of the scanner motor driver\r\n 4. Failure of the main board"

100074

MEANING="FB BS+ reverse error"

DESCRIPTION="- Operation failure of the scanner motor\r\n 1. The scanning operation was stopped by;\r\n - Disengaging of the scanner CR\r\n - Disengaging of the scanner motor pulley\r\n or cracking of the scanner motor gears\r\n- Failed to read the scanner encoder\r\n 2. Contamination of the scanner encoder\r\n 3. Damage or skew of the scanner FFC\r\n 4. Failure of the scanner encoder sensor\r\n 5. Failure of the main board"

100075

MEANING="FB BS+ lock error"

DESCRIPTION="- The scanner motor did not run\r\n 1. The scanning operation was stopped by;\r\n - Disengaging of the scanner CR\r\n - Disengaging of the scanner motor pulley\r\n or cracking of the scanner motor gears\r\n- Failed to read the CR motor encoder\r\n 2. Contamination of the scanner encoder\r\n 3. Damage or skew of the scanner FFC\r\n 4. Failure of the scanner encoder sensor\r\n 5. Failure of the scanner motor\r\n 6. Failure of the main board"

100077

MEANING="FB BS+ excess load error"

DESCRIPTION="- The scanner motor stopped running in the middle of the operation\r\n 1. The scanning operation was stopped by;\r\n - Disengaging of the scanner CR\r\n - Disengaging of the scanner motor pulley\r\n or cracking of the scanner motor gears\r\n- Failed to read the scanner motor encoder\r\n 2. Contamination of the scanner encoder\r\n 3. Disconnection, break, skew or damage of the scanner FFC\r\n 4. Failure of the scanner encoder sensor\r\n 5. Failure of the scanner motor\r\n 6. Failure of the main board"

100078

MEANING="FB BS+ driving time error"

DESCRIPTION="Malfunction or crash of the firmware"

000020

MEANING="CR PID driving time error"

DESCRIPTION="Malfunction or crash of the firmware"

000021

MEANING="CR PID excess load error"

DESCRIPTION="- The CR motor stopped running in the middle of the operation\r\n 1. The CR was stopped by;\r\n - Obstacles such as jammed paper\r\n - Overload of the mechanism\r\n - Interfere with the ink system\r\n - Disengaging, fraying, jumping of the timing belt\r\n - Crack or disengaging of the gear, or the APG\r\n lever interferes with the CR\r\n- Failed to read the CR encoder\r\n 2. Contamination of the CR encoder scale\r\n 3. Failure of the CR motor (not completely broken)\r\n 4. Failure of the main board"

000022

MEANING="CR PID excess speed error"

DESCRIPTION="- Failed to read the CR encoder\r\n 1. Contamination of the CR encoder scale\r\n 2. Damage or skew of the CR encoder FFC\r\n 3. Failure of the CR encoder sensor\r\n- Failure of the CR motor driver\r\n 4. Failure of the main board"

000023

MEANING="CR PID reverse error"

DESCRIPTION="- Operation failure of the CR motor, stopped by obstacles\r\n 1. CR was stopped by;\r\n - Obstacles such as jammed paper\r\n - Interfere with the ink system\r\n - Disengaging or breakage of the gears\r\n- Failed to read the CR encoder\r\n 2. Jumping of the CR timing belt\r\n 3. Contamination of the CR encoder scale\r\n 4. Damage or skew of the CR encoder FFC\r\n 5. Failure of the CR encoder sensor\r\n 6. Failure of the main board"

000024

MEANING="CR PID lock error"

DESCRIPTION="- The CR motor did not run, or the CR could not move smoothly\r\n 1. Overload of the CR\r\n- Failed to read the CR encoder\r\n 2. The timing belt become frayed or jumping\r\n 3. Contamination of the CR encoder scale\r\n 4. Disconnection, break, skew or damage of the CR encoder FFC\r\n 5. Failure of the CR encoder sensor\r\n 6. Failure of the CR motor (the lead wire is broken\r\n or the connector is disconnected)\r\n 7. Failure of the main board"

000025

MEANING="CR PID speed fall error"

DESCRIPTION="- Operation failure of the CR\r\n 1. The CR was stopped by;\r\n - Obstacles such as jammed paper\r\n - Overload of the mechanism\r\n - Interfere with the ink system\r\n- Failed to read the CR motor encoder\r\n 2. The timing belt become loosened or jumping\r\n 3. Contamination of the CR encoder scale\r\n 4. Damage or skew of the CR encoder FFC\r\n 5. Failure of the CR motor\r\n 6. Failure of the main board"

000030

MEANING="CR load position driving time error"

DESCRIPTION="Malfunction or crash of the firmware"

000031

MEANING="CR load position excess load errorƒGƒ‰"

DESCRIPTION="- The CR motor stopped running in the middle of the operation\r\n 1. The CR was stopped by;\r\n - Obstacles such as jammed paper\r\n - Overload of the mechanism\r\n - Interfere with the ink system\r\n - Disengaging or breakage of the gears\r\n - Disengaging, fraying, jumping of the timing belt\r\n- Failed to read the CR encoder\r\n 2. Contamination of the CR encoder scale\r\n 3. Failure of the CR motor (not completely broken)\r\n 4. Failure of the main board"

000032

MEANING="CR load position excess speed error"

DESCRIPTION="- Failed to read the CR encoder\r\n 1. Contamination of the CR encoder scale\r\n 2. Damage or skew of the CR encoder FFC\r\n 3. Failure of the CR encoder sensor\r\n- Failure of the CR motor driver\r\n 4. Failure of the main board"

000033

MEANING="CR load position reverse error"

DESCRIPTION="- Operation failure of the CR motor, stopped by obstacles\r\n 1. CR was stopped by;\r\n - Obstacles such as jammed paper\r\n - Overload of the mechanism\r\n - Interfere with the ink system\r\n- Failed to read the CR encoder\r\n 2. Jumping of the CR timing belt\r\n 3. Contamination of the CR encoder scale\r\n 4. Damage or skew of the CR encoder FFC\r\n 5. Failure of the CR encoder sensor\r\n 6. Failure of the main board"

000040

MEANING="PF PID driving time error"

DESCRIPTION="Malfunction or crash of the firmware\r\n  The PE sensor remains in paper detection status\r\n and a paper jam error occurs instead of causing a fatal error."

000041

MEANING="PF PID excess load error"

DESCRIPTION="- The PF motor stopped running in the middle of the operation\r\n 1. The PF was stopped by;\r\n - Obstacles such
